Casing Pressure Testing Plug
| Payment Terms: | T/T,L/C |
| Place of Origin: | Heilongjiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

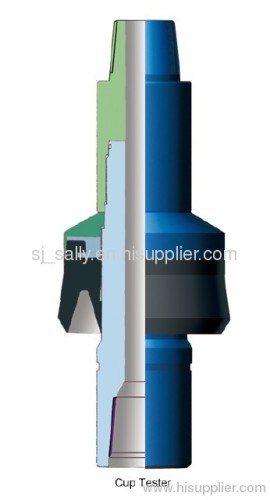

Cup tester is designed to be attached to the drill string and then lowered into the casing beneath the wellhead to pressure test the blowout preventer
Cup tester is designed to be attached to the drill string and then lowered into the casing beneath the wellhead to pressure test the blowout preventer stack and wellhead. When the cup tester is lowered into the casing beneath the wellhead, pressure is applied to either a test pump, or by hoisting type cup after filling the hookup with water. The latter method is fast and accurate.
Type | Suitable Casing | Connection | Bearing Area of Plug (cm2) | Max Seal Pressure(Mpa) | Length(mm) | ||
O.D | I.D.(mm) | ||||||
TSQ127 | 5 | 108.6—114.1 | NC26 | 81 | 70 | 640 | |
TSQ140 | 5-1/2 | A | 124.3—125.7 | NC31 | 104 | 70 | 700 |
B | 118.6—121.4 | 96 | |||||
TSQ178 | 7 | A | 159.4—164.0 | NC38 | 155 | 35 | 700 |
B | 150.4—157.1 | 133 | |||||
TSQ245 | 9-5/8 | A | 224.4—226.6 | NC50 | 305 | 35 | 840 |
B | 216.8—222.4 | 282 | |||||
TSQ273 | 10-3/4 | A | 250.1—255.3 | NC50 | 402 | 35 | 840 |
B | 242.8—247.9 | 366 | |||||
TSQ339 | 13-3/8 | A | 317.9—320.4 | NC50 | 682 | 35 | 840 |
B | 313.6—315.3 | 657 | |||||
